FINAL MODEL
DESIGN PROCESS
The process started with studying the original building given, which is Denny's & Autozone retails.
SITE : DENNY'S & AUTOZONE @ 3060 N San Fernando Rd, Los Angeles, CA

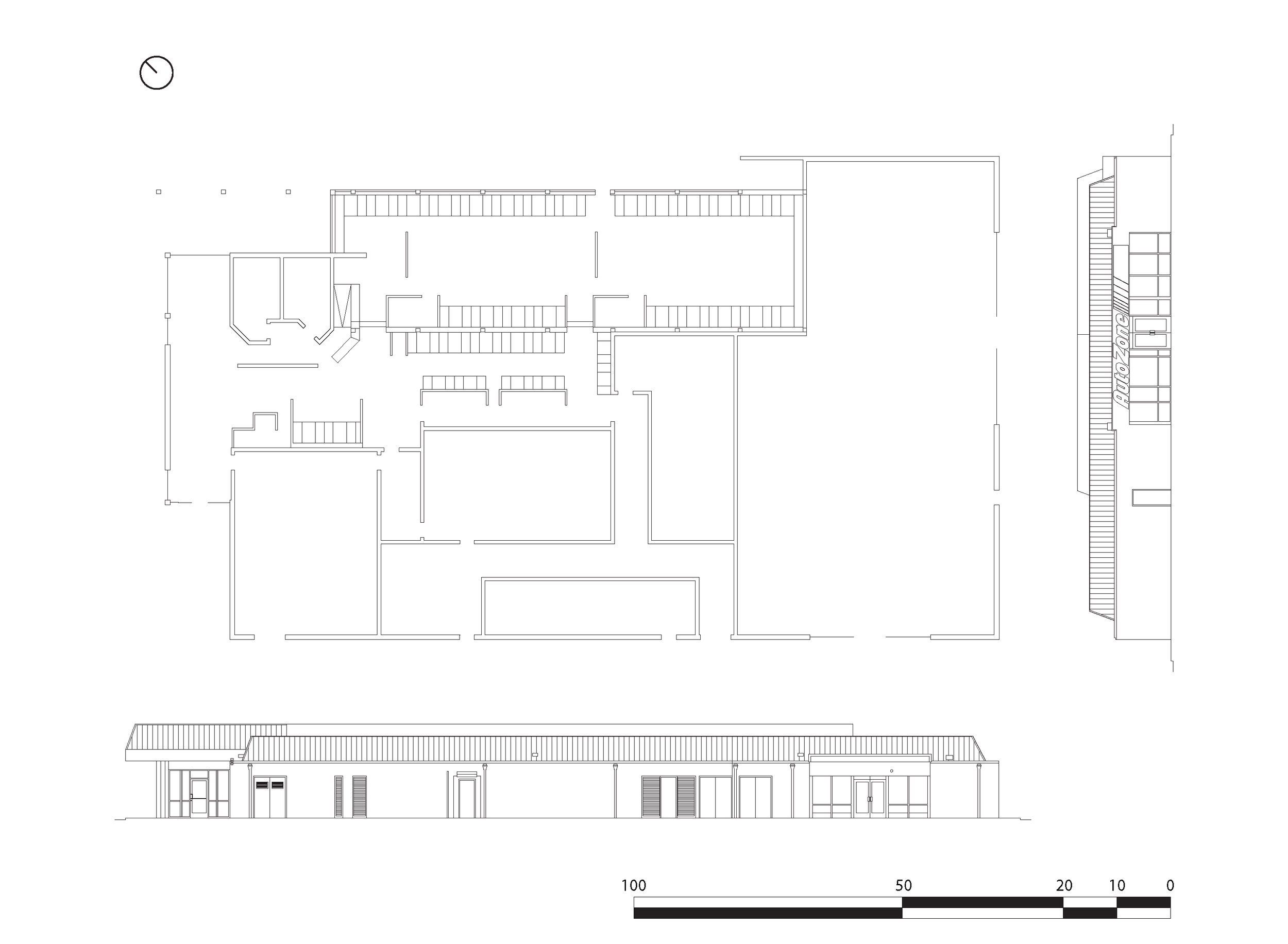

DENNY'S & AUTOZONE PLAN VIEW
DIAGRAM STUDY
DIAGRAM EXTRACTED FROM STUDY
The main idea of the design is that it consists of two distinct parts: one is completely generic and the other one is more specific with pronounced construction technique
BRICK VAULTING SYSTEM DETAILS
Brick Vaulting system are used for the specific part of the building to recall the brick surface of the original building. As part of the design element, this part of the building is higher than the rest of the building with significantly smaller volume. This is where the ready-made, Piazza D' Oro took a significant place in improving the design. Piazza D' Oro introduced a more detailed and distinctive dome design.
ISOMETRIC DRAWINGS
Inside the chamber, the design allows one to attach a number of smaller chambers that within the same space, each chamber can have its own structural system and different roof. When these unique elements are applied into the more distinct part of the building, it significantly improves the purpose of the design.
FINAL PLAN VIEW
PHOTOMONTAGE (to approximately show how the final building looks like in real life)
